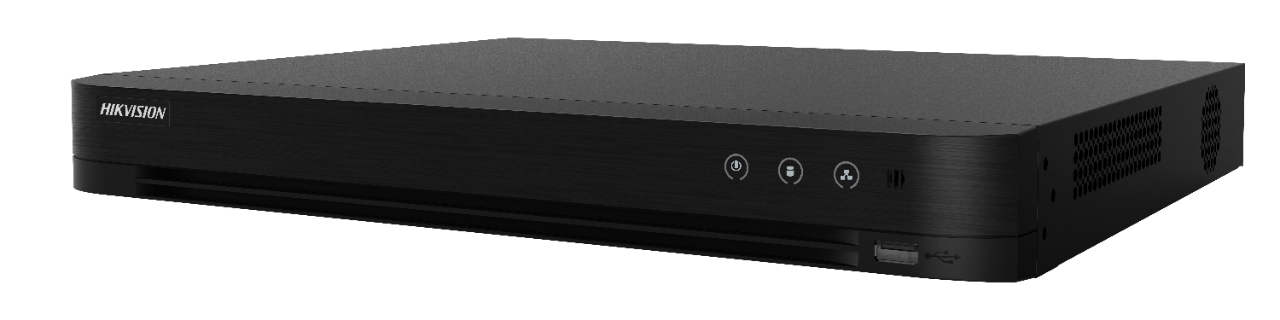

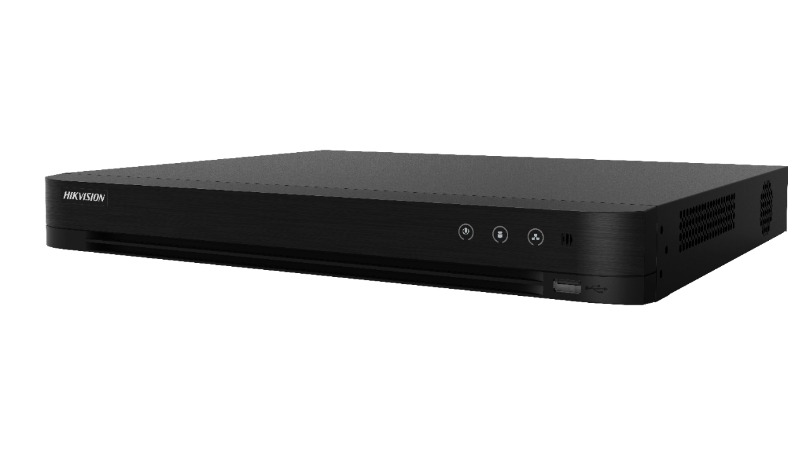

Hikvision 8-ch 1080p 1U H.265 AcuSense DVR
Product SKU: iDS-7208HQHI-M1/S
Supports facial recognition or false alarm reduction based on deep learning algorithm
Supports face picture comparison and face picture search
Up to 16 face picture libraries, with up to 500 face pictures in total
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 12 network cameras can be connected
- Smart Analysis
- Facial Detection And CaptureFace picture comparison, face picture search
- Face Picture LibraryUp to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
- Face Picture Comparison1-ch face picture comparison alarm
- Human/Vehicle Analysis
- False Alarm ReductionUp to 4-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
Main stream:
When 1080p lite mode not enabled:
For 4 MP stream access:
4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input
2-ch (up to 10-ch)
Up to 6 MP resolution
IP enhanced mode on:
4-ch (up to 12-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input
4 MP lite, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
*: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/FA, for channel 1/2 of iDS-7208HQHI-M1/FA, and for channel 1/2/3/4 of iDS-7216HQHI-M1/FA.
- AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI/VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz, HDMI/VGA simultaneous output
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback8-ch
- Network
- Remote Connection64
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface, up to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB Interface
Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
- Alarm In/OutN/A
- General
- Power Supply12 VDC, 1.5 A
- Consumption(Without HDD)≤ 18 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight (Without HDD)≤ 1.78 kg (3.9 lb)
