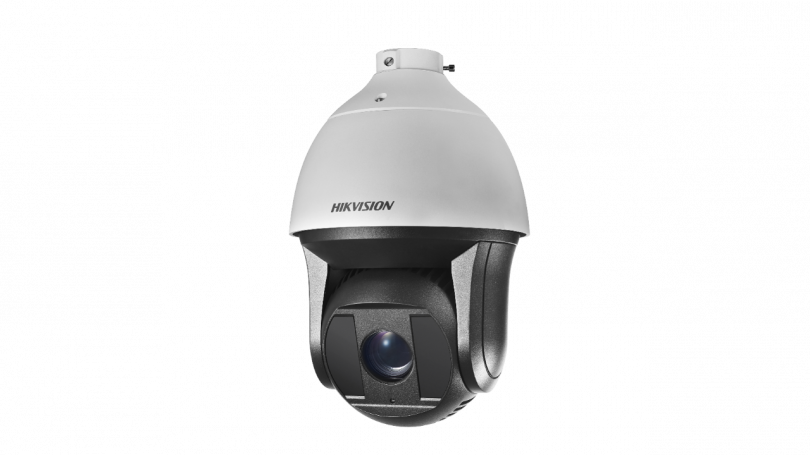

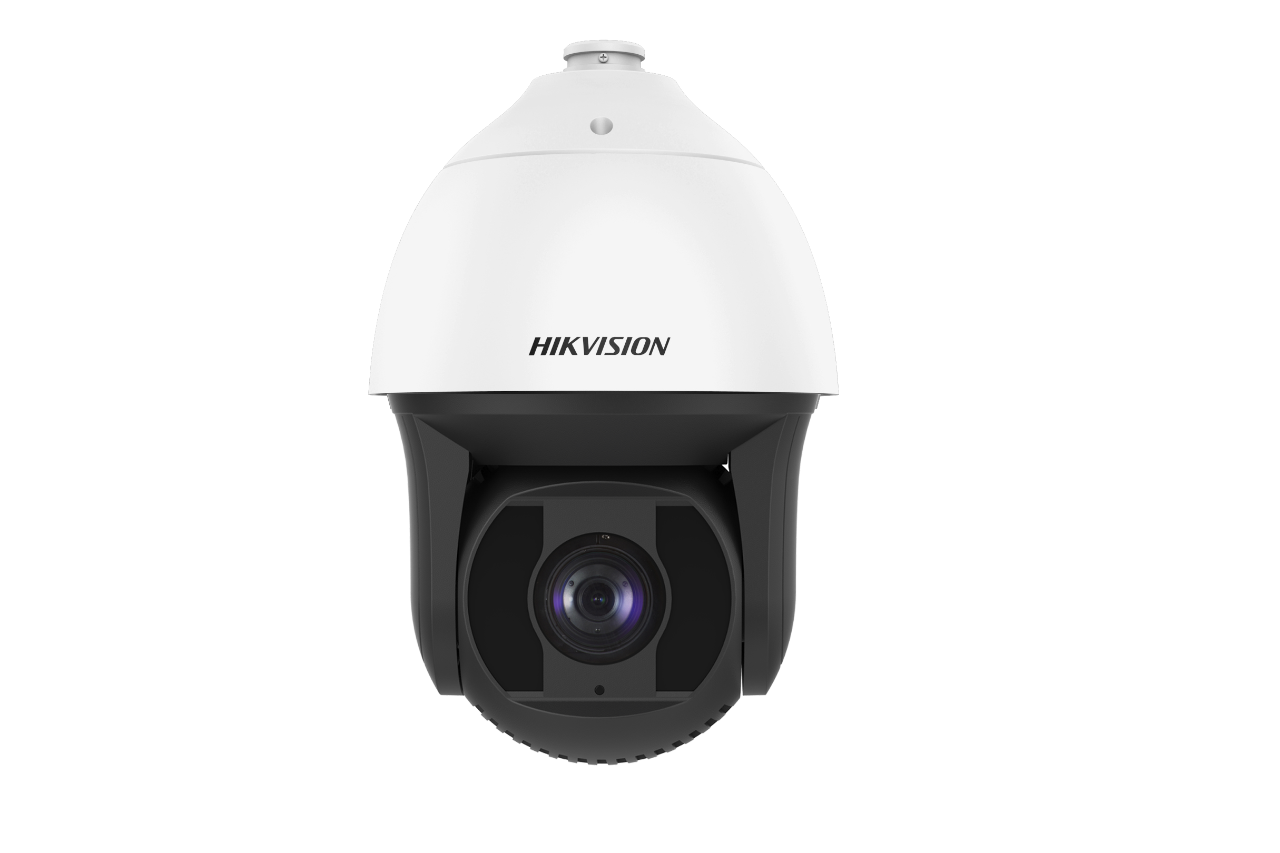

Hikvision 2-MP 25X Ultra-low Light Network Darkfighter 400m IR PTZ Dome Camera

Add your review

Product SKU: DS-2DF8225IX-AEL (T3)

Manufacturer: Hikvision
1/1.8" Progressive Scan CMOS
Up to 1920 × 1080 resolution
Min. Illumination: Color: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON),0 Lux with IR
25× optical zoom, 16× digital zoom
140dB WDR, 3D DNR, HLC, Smart IR
24 VAC & Hi-PoE
Up to 400 m IR distance
Support H.265+/H.265 video compression
Support vandal-proof alarm
Support face capture to detect, track, capture, grade, and select face in motion
Support road traffic to detect vehicles, including license plate number, vehicle model, and vehicle color
Support rapid focus
IK10, IP67
  • Camera
  • Image Sensor1/1.8＂ progressive scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.5, AGC ON) B/W: 0.0002 Lux @ ((F1.5, AGC ON),0Lux with IR
  • Shutter Speed1/1s ~ 1/30,000s
  • Focusauto;semi-auto;manual
  • Day & NightICR
  • BLCyes
  • WDR140 dB WDR
  • HLCyes
  • 3D DNRyes
  • EISyes
  • Regional Exposureyes
  • Regional Focusyes
  • Digital Zoom16x
  • Optical Zoom25x
  • Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
  • DORI

    Detect(25px/m)：2034.5m

    Observe(63px/m)：807.3m

    Recognize(125px/m)：406.9m

    Identify(250px/m)：203.4m

  • General Functionmirror, password protection, watermark, IP address filter
  • Lens
  • Focal Length5.9mm to 147.5mm, 25× Optical
  • Zoom Speedapprox. 4.8 s (optical, wide-tele)
  • FOV

    Horizontal field of view: 59.8° to 3.3° (wide-tele),

    Vertical field of view: 33.7° to 1.9° (wide-tele),

    Diagonal field of view: 65° to 3.8° (wide-tele)

  • ApertureAperture：F1.5-F3.4
  • Illuminator
  • IR Distance400 m
  • Smart IRyes
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)-20° to 90° (auto flip)
  • Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
  • Proportional Zoomyes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-Off Memoryes
  • Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Preset Freezingyes
  • Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

    60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  • Sub-Stream

    50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

    60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)



  • Video CompressionH.265;H.264;MJPEG
  • H.264 Typebaseline profile;main profile;high profile
  • H.265 Typemain profile
  • H.264+yes
  • H.265+yes
  • SVCyes
  • ROIdynamic face tracking;dynamic license plate tracking;fixed region
  • Audio
  • Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
  • Smart Features
  • Basic Eventalarm input and output;motion detection;video tampering alarm
  • Smart EventIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;face capture;object removal detection;unattended baggage detection;vandal-proof alarm
  • Smart Trackingmanual tracking;auto-tracking;event tracking
  • Smart RecordANR;Dual-VCA
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
  • APIONVIF (Profile S, Profile G, Profile T);Hikvision SDK; ISAPI
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+
  • Interface
  • Communication Interface1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE
  • On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Alarm Input7 alarm inputs
  • Alarm Output2 alarm outputs
  • Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output1 audio output, line level, impedance: 600 Ω
  • Video OutputNTSC;PAL;1.0V[p-p]/75Ω;BNC connector
  • RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • General
  • Power24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
  • Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
  • DimensionsΦ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
  • Approx. 8 kg (17.64 lb)
  • Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
