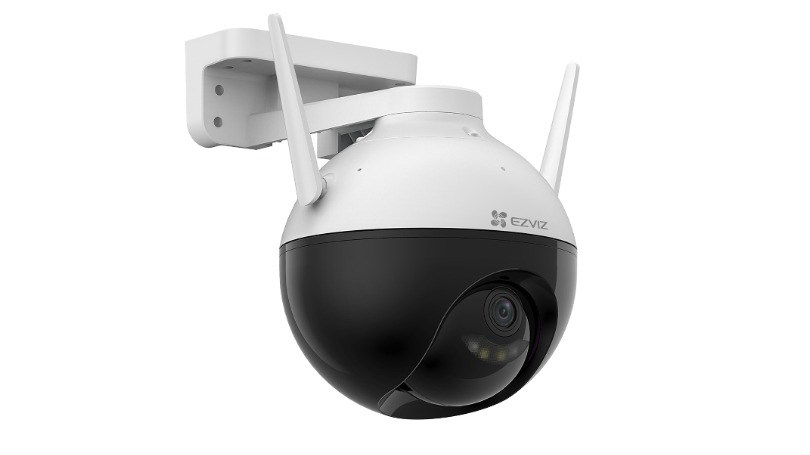

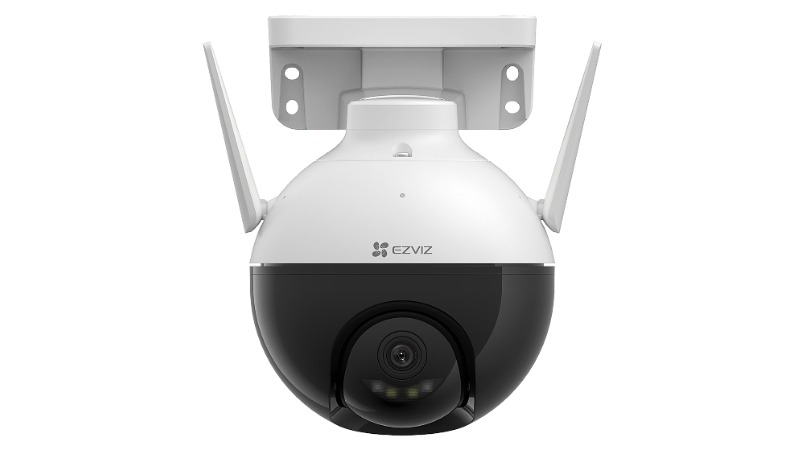

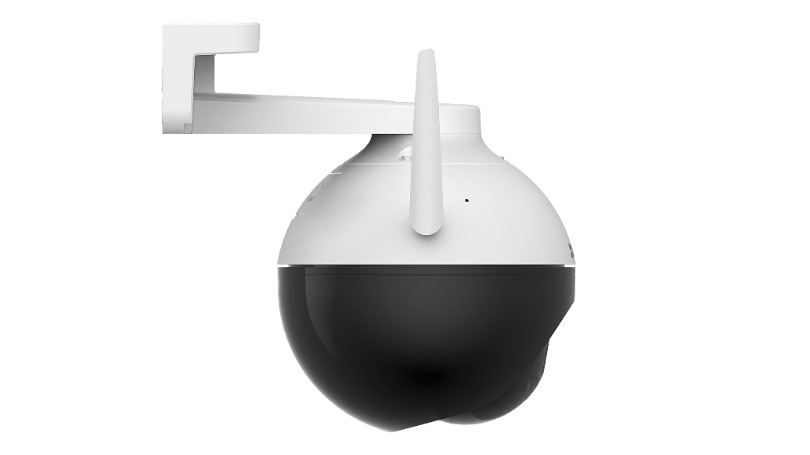

Ezviz C8C Outdoor Pan and Tilt Camera
R1610
Product SKU: CS-C8C-A0-3H2WFL1
Manufacturer:
Ezviz
The Ezviz C8C Outdoor Pan and Tilt camera gives you as a user the opportunity to cover a larger area outside . The C8C has a 352 degrees Horizontal rotation and 95 degrees vertical tilt range. With new AI-powered person detection you C*C can notify if a human has entered your customized detection area.
3 Night vision modes are available:
-Full color night vision
-Black and white night vision
-Smart night vision ( Automatically switch from B&W to Color Monitoring)
One way Audio-you can hear what is happening . (Note that: You can not speak over device)
Bracket included in box
3 Night vision modes are available:
-Full color night vision
-Black and white night vision
-Smart night vision ( Automatically switch from B&W to Color Monitoring)
One way Audio-you can hear what is happening . (Note that: You can not speak over device)
Bracket included in box
C8C
Specifications
| Specifications | |
|---|---|
| Model | CS-C8C (1080P) |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6, view angle: 87° (Horizontal), 105° (Diagonal) 6mm @ F1.6, view angle:55° (Horizontal), 66° (Diagonal) |
| PT Angle | Pan: 352°, Tilt: 95° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| Black & White Night | 30 m / 100 ft. |
| Video & Audio | |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Max:30 fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 2 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port) |
| Storage | |
| Local Storage | MicroSD card slot (Max. 256G) |
| Cloud Storage | EZVIZ Cloud Storage |
| Function | |
| Smart Alarm | AI Person Detection |
| Customized Alert Area | Supports |
| Audio | Supports mic |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| General | |
| Operating Conditions | -30°C ~ 60°C (14°F to 113 °F), Humidity 95% or less (non-condensing) |
| IP Grade | IP65 |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 6W |
| Dimensions | 158 x 157 x 149 mm (6.22 x 6.18 x 5.87 inch) |
| Packaging Dimensions | 197 x 185 x 205 mm (7.76 x 7.28 x 8.07 inch) |
| Weight | 885 g (31.22 oz) |
| Net Weight | 510 g (17.99 oz) |
| In the box: | |
| In the box: | C8C Camera 1.5-Meter Power Adapter Screw Kit Waterproof Kit Drill Template Regulatory Information Quick Start Guide |
| Certifications: | |
| Certifications: | UL / FCC / CE / WEEE / REACH/ ROHS |
