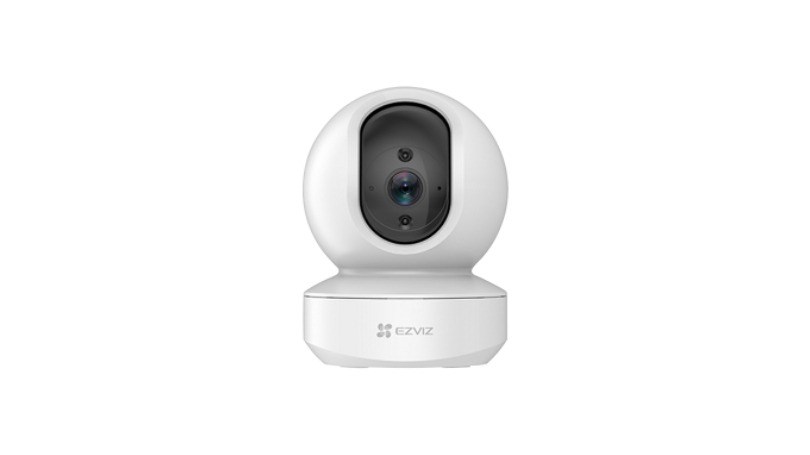

Ezviz TY1 Smart Wi-Fi Pan & Tilt Camera


Product SKU: CS-TY1-B0-1G2WF

Manufacturer: Ezviz
Watch over your entire space easily with the TY1 Camera’s 360-degree field-of-view and its smart tracking feature. It’s got you covered – all day & all night.

The TY1 is n standalone unit from Ezviz that can be used with the Ezviz app.
This camera is a great starting point if you are looking to add some CCTV cameras in your house.
Useful in:
-Keeping an eye on your kids.
-Keeping an eye on individuals doing work inside you house
-Checking in on your pets
1080p Video
Power Source 12V DC
Motorized Pan and Tilt 360 Degree Visiual Coverage
Up To 10M IR
Micro SD Support
WiFi Control Via EZVIZ App
Smart Tracking


  • TY1
    Model Parameters
    Model Model CS-TY1-B0-1G2WF
    Image Sensor 1/3" Progressive Scan CMOS
    Shutter Speed Self-adaptive shutter
    Lens 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical
    Lens Mount M12
    Day & Night IR-cut filter with auto-switching
    DNR 3D DNR
    WDR Digital WDR
    Video Compression H.264
    Video Bit Rate Adaptive bit rate.
    Max. Resolution 1920 × 1080
    Frame Rate Max:15fps; Self-Adaptive during network transmission
    Smart Alarm Motion detection
    Wi-Fi Pairing AP pairing
    Protocol EZVIZ Cloud proprietary protocol
    Interface Protocol EZVIZ Cloud proprietary protocol
    Storage MicroSD card slot (Max. 256GB)
    Power Micro USB
    Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)
    Standard IEEE802.11b/g/n
    Frequency Range 2.4 GHz ~ 2.4835 GHz
    Channel Bandwidth Supports 20MHz
    Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
    Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps
    Operating Environment
    Temperature -10°C to 45°C (14°F to 113 °F)
    Humidity 95% or less (non-condensing)
    Power Supply DC 5V/1A
    Power Consumption 5W max
    IR Range MAX. 10 meters (32.81 ft.)
    Dimensions 88 x 88 x 118.7 mm (3.46 x 3.46 x 4.67 inch)
    Packaging Dimensions 103 x 103 x 186 mm (4.06 x 4.06 x 7.32 inch)
    Net Weight 259g (9.14oz)
    In the box:
    In the box: TY1 Pan/Tilt Camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template ; Power Adapter ; Quick Start Guide
    certificates: FCC / UL / CE / WEEE / REACH / RoHS
